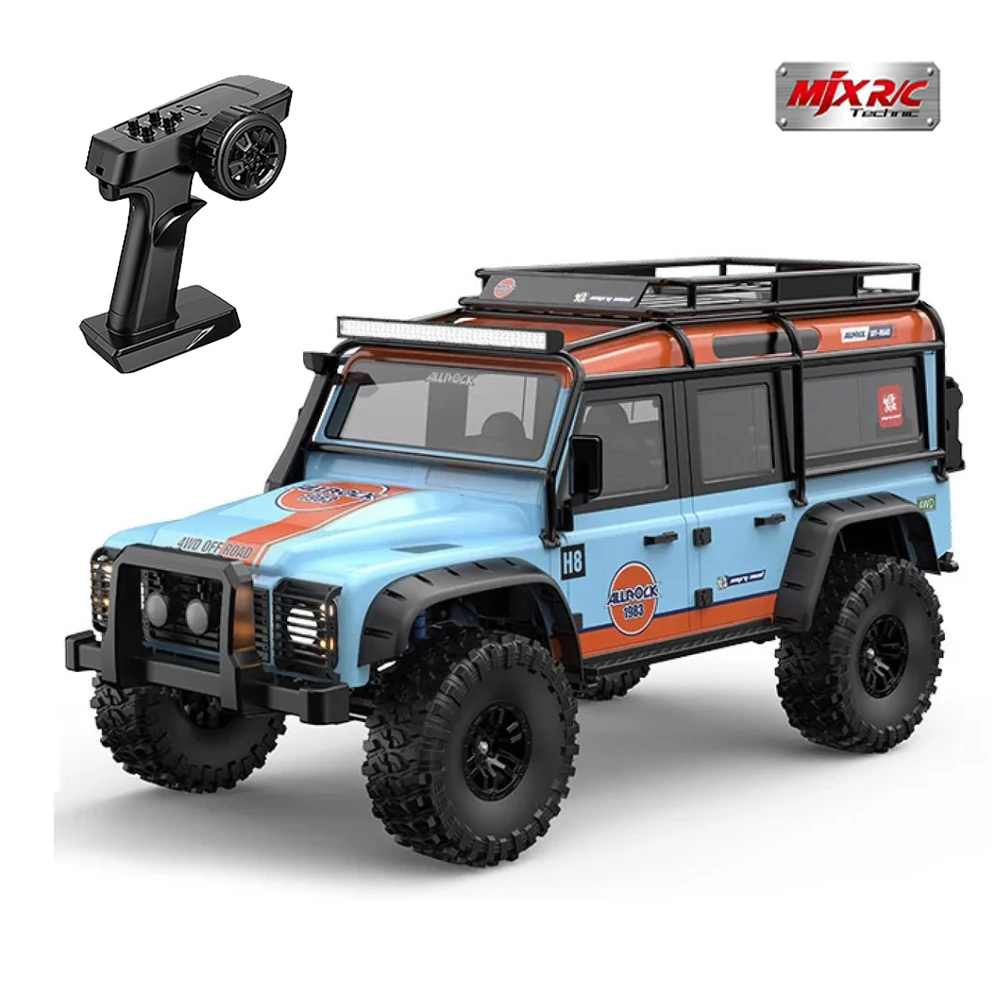

MJX H8H V2 FOC Brushless 1/8 Professional Climbing Vehicle 8CH Simulation With Light Differential Lock APP Programing RC Crawler

NOTE: The standard package does not include batteries and charging, which need to be purchased separately (the charging cable must be compatible with 2S3S)

Basic parameters

Product model H8H

Case color Blue/Yellow/Dark gray/Pink

Scale 1/8

Maximum speed (slow gear) 2S: 8km/h

3S: 18.5km/h

Maximum speed (fast gear) 2S: 13km/h

3S: 29km/h

Remote control distance Ã¢‰Â¥120 meters

Dimensions and specifications

Product size (mm) 680Ãƒ—298Ãƒ—325

Wheelbase (mm) 373

Track (mm) 240

Tire diameter (mm) 132mm (2.2 inches)

Vehicle weight 5.4KG

Configuration

Motor Specifications 3970 1500KV Sensored Brushless Motor

ESC 80A FOC Sensored Brushless ESC

Servo Specifications 35KG Steering Servo

Receiving and Transmitting Frequency 2.4Ghz

Remote Control 8CH

Remote Control Battery 3*AA (Not Included)

Battery Specifications Not Included, Batteries and Chargers Needed to be Purchased Separately

Climbing function configuration

Gate bridge including

Gear 2-speed gear ratio, remote control 17g servo switch

Differential front/rear differential

Differential lock front/rear differential lock, remote control 17g servo switch

Reverse transmission No

Transmission interruption No

Two-wheel drive/four-wheel drive switch No

Winch Optional

Shell fixing method Manual screw + front flip cover magnetic suction

Link mechanism 4-link + rear Watt link

Servo position On the bridge

Product structure configuration

1. Front and rear axle differential locks, front and rear door axle structures

2. Aluminum hydraulic shock absorbers

3. Two-speed mechanical transmission

4. Powder metallurgy gears for the entire vehicle (differential, front and rear axles, door axles, transmission gearbox)

5. Steel drive shafts for the entire vehicle, steel connecting rods for the entire vehicle

6. CNC integrated aluminum alloy beam

Electronic configuration

1. Bluetooth APP parameter adjustment – FOC sensor 80A brushless ESC (torque compensation function)

2. 3970 magnetically encoded FOC sensor brushless motor

3. 8-channel remote control and receiver (remote control distance 120 meters)

4. Simulation headlight set (10 modes, 120 LED lamp beads for the whole car)

5. 35KG stainless steel gear steering servo

6. Compatible with 2s-3s batteries

Packaging information

Packaging type Foam storage box outer box

Quantity 1 piece

Outer box size (cm) 76 X 39 X 43 cm

Full set product weight 7.8KG (excluding batteries)

Gross weight: 9.7KG

Net weight: 7.8KG

Pink no battery
